SAP Fiori Development Complete Guide — How to Build, Deploy and Extend Fiori Apps Like a Pro in 2026

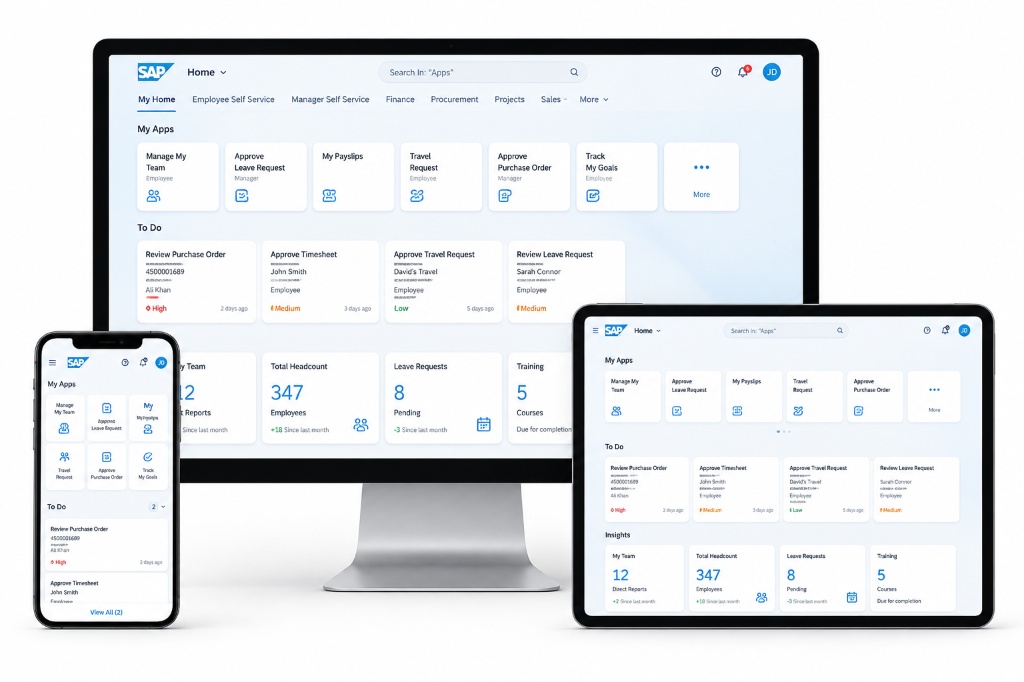

Figure 1: SAP Fiori serves as the modern cloud-ready design language and front-end framework for enterprise applications.

Alright so if you’ve been following this blog series — we’ve covered SAP BTP, Integration Suite, and SAP Joule in the last three posts.

Every single one of those topics eventually circled back to one thing — SAP Fiori.

BTP hosts Fiori apps. Integration Suite powers data that Fiori apps consume. Joule surfaces inside Fiori interface. Everything in modern SAP lands on a Fiori screen eventually.

So this post is the one I should probably have written first — a complete, honest, practical guide to SAP Fiori development. Not just what Fiori is. Not just theory. But how it actually gets built, deployed, extended, and maintained on real projects.

I’ve tried to make this the single most useful Fiori development post on the internet for someone who is either just starting out or trying to level up from basic understanding to actual development capability.

Let’s go properly deep on this.

Quick Recap — What Fiori Actually Is

Before development, thirty seconds of context for anyone jumping into this post fresh.

SAP Fiori is SAP’s user experience framework and application suite — the modern interface layer that sits on top of S/4HANA and other SAP cloud products. Every standard SAP transaction is being replaced by a Fiori equivalent app. Every new S/4HANA implementation runs Fiori as its primary UI.

From a development perspective — Fiori apps are web applications built using SAPUI5 (SAP’s JavaScript framework), connected to SAP backend through OData services, deployed on SAP BTP or S/4HANA embedded server, and launched through Fiori Launchpad.

That four-part stack — SAPUI5 frontend, OData services, deployment platform, Fiori Launchpad — is what Fiori development actually means in practice. Understanding each part is what this post covers.

The Three Types of Fiori Apps — Know This Before Building Anything

Here’s something that trips up almost every beginner — Fiori isn’t one type of app. There are three at its core different app types and choosing the wrong one for a requirement wastes enormous time.

Figure 2: Distinguishing between Transactional, Analytical, and Fact Sheet Fiori templates.

Type 1 — Transactional Apps

Transactional apps are for doing things — creating documents, editing records, approving requests, posting transactions.

• Examples: Create Purchase Order, Post Goods Receipt, Approve Leave Request, Submit Expense Report.
• Technical details: These apps are full SAPUI5 applications — custom views, controllers, navigation flows, form validations, action buttons. They’re the most complex to build from scratch but give maximum flexibility for custom requirements.
• When to build transactional: Any scenario where users need to create, change, or process SAP business documents.

Type 2 — Analytical Apps

Analytical apps are for understanding things — dashboards, KPI monitoring, trend analysis, exception reporting.

• Examples: Revenue Overview Dashboard, Inventory Aging Analysis, Open Purchase Order Monitor, Employee Headcount Analytics.
• Technical details: These are typically built using SAP Analytics Cloud embedded in Fiori, or using Fiori Overview Pages and Analytical List Pages — framework-based approaches that generate rich analytical UIs with significantly less custom code.
• When to build analytical: Any scenario where users need to monitor, analyze, or get insights from SAP data.

Type 3 — Fact Sheet Apps

Fact sheets are 360-degree views of a specific business object — showing all relevant information about a customer, material, vendor, or employee in one consolidated screen.

• Examples: Customer Fact Sheet (open orders, recent invoices, credit status, contacts), Material Fact Sheet (current stock, open POs, recent GRs), Vendor Fact Sheet.
• Technical details: Fact sheets use Smart Templates and are heavily annotation-driven — meaning much of the UI generates automatically from metadata rather than custom code.
• When to build fact sheets: Any scenario where users need complete context about a specific business object quickly.

The Fiori Development Stack — Full Picture

Now let’s map out exactly what technologies are involved in building a Fiori app from end to end.

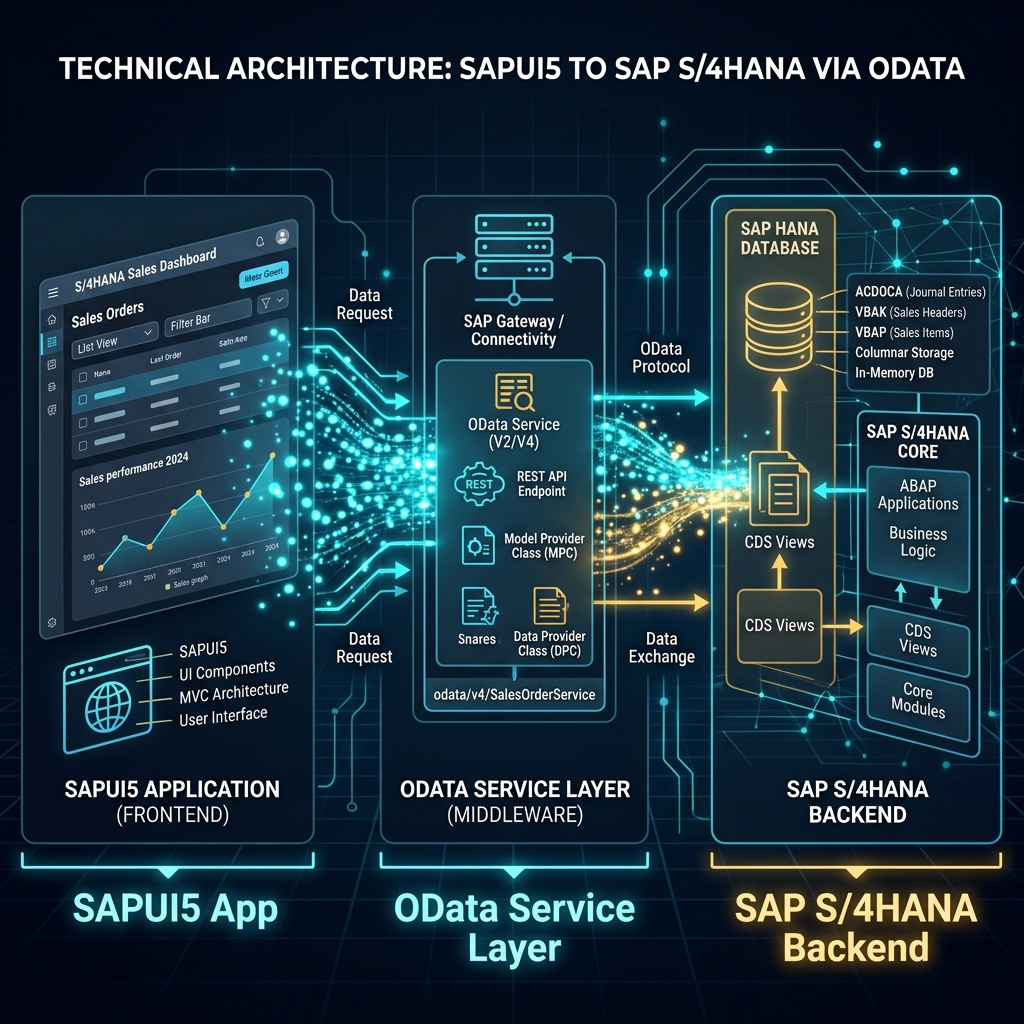

Figure 3: Full-stack communication path from CDS data models to OData API bindings and UI5 render engines.

USER BROWSER
     ↓
SAPUI5 / Fiori Elements (Frontend JavaScript Framework)
     ↓
OData V2 / V4 Service (Data API Layer)
     ↓
ABAP RAP / Gateway (Backend Service Layer)
     ↓
S/4HANA Database — CDS Views / HANA Tables

Each layer has specific technologies and responsibilities. A complete Fiori developer understands all of them — even if they specialize in one.

Layer 1 — The Frontend: SAPUI5 and Fiori Elements

We covered SAPUI5 architecture in detail in an earlier post on this blog. Quick summary for context here — SAPUI5 is SAP’s JavaScript framework for building enterprise web applications. MVC architecture, data binding, pre-built controls, OData model integration.

But in 2026, most professional Fiori development doesn’t start with blank SAPUI5. It starts with Fiori Elements.

What Are Fiori Elements?

Fiori Elements is a framework within SAPUI5 that generates Fiori UI automatically from backend metadata and annotations — dramatically reducing the amount of frontend code you need to write.

Instead of manually building every view, controller, and binding — you define annotations in your ABAP backend that describe what the UI should look like, and Fiori Elements generates the appropriate frontend automatically.

Figure 4: Standard Fiori Elements floorplans: List Report, Object Page, Worklist, and Overview cards.

Four main Fiori Elements floorplans:

• List Report + Object Page — most commonly used combination. List Report shows a searchable, filterable table of business objects. Clicking one opens Object Page showing full details with sections, tabs, and actions.
• Worklist — simpler list-based app without the full filter bar of List Report. Good for task lists and approval queues.
• Overview Page — card-based dashboard showing multiple data streams in one screen. Each card is an independent data source. Great for role-based cockpits.
• Analytical List Page — combines analytical chart at top with interactive list below. Perfect for exception management scenarios where users identify issues visually and drill into details.

Why Fiori Elements matters for development: A List Report + Object Page app that would take 3-4 weeks to build from scratch in custom SAPUI5 takes 3-4 days using Fiori Elements — because the framework handles all standard behavior automatically. Sorting, filtering, navigation, responsive layout, edit/save/cancel flows, validation messages — all built in.

Custom code only needed for genuinely custom requirements — special calculations, non-standard UI behavior, custom actions.

Layer 2 — The API Layer: OData Services

OData (Open Data Protocol) is the standard API protocol connecting Fiori frontend to SAP backend. Every piece of data a Fiori app displays or modifies goes through an OData service.

OData V2 vs OData V4

Two versions exist and knowing the difference matters for project work.

• OData V2 — older standard, still widely used in existing SAP systems and many standard SAP Fiori apps. SAPUI5’s V2 OData Model connects to these services.
• OData V4 — newer, more powerful standard with better batch processing, delta tokens, server-side actions, and type system. RAP-based services use OData V4. New Fiori Elements apps increasingly use V4.

For new development on S/4HANA — OData V4 is the direction. For working with existing systems — V2 knowledge remains essential.

Layer 3 — The Backend: ABAP RAP

RAP — RESTful ABAP Programming Model is how OData V4 services get built in modern S/4HANA ABAP development. We mentioned RAP in earlier posts — this is where it connects directly to Fiori.

A complete RAP backend for a Fiori app involves:

CDS Views — Data Model

CDS (Core Data Services) views define the data model your Fiori app works with. They sit on top of database tables and join tables, mapping UI properties dynamically.

Figure 5: Mapping frontend layout positions directly inside Eclipse ADT ABAP CDS Views using @UI annotations.

@AbapCatalog.sqlViewName: 'ZPURCHORDER'
@AccessControl.authorizationCheck: #CHECK
@EndUserText.label: 'Purchase Order View'

@UI.headerInfo: {
    typeName: 'Purchase Order',
    typeNamePlural: 'Purchase Orders',
    title: { value: 'PurchaseOrder' }
}

define view entity ZC_PurchaseOrder
  as select from ekko
  association [0..*] to ZC_PurchOrderItem
    as _Items on $projection.PurchaseOrder
                 = _Items.PurchaseOrder
{
      @UI.lineItem: [{ position: 10 }]
      @UI.selectionField: [{ position: 10 }]
  key ekko.ebeln        as PurchaseOrder,

      @UI.lineItem: [{ position: 20 }]
      ekko.lifnr        as Vendor,

      @UI.lineItem: [{ position: 30 }]
      ekko.bedat        as OrderDate,

      @UI.lineItem: [{ position: 40 }]
      ekko.netwr        as NetValue,

      @UI.lineItem: [{ position: 50 }]
      ekko.waers        as Currency,

      _Items
}

Those @UI annotations are what Fiori Elements reads to know which fields to show in the list, which to put in filter bar, what the header title should be. You’re configuring the UI from ABAP — without writing a single line of JavaScript.

Behavior Definition — Business Logic

Behavior Definition (BDEF) describes what operations are allowed on your business object:

managed implementation in class
    zbp_purchase_order unique;

define behavior for ZC_PurchaseOrder
    alias PurchaseOrder
{
    create;
    update;
    delete;

    action approvePO result [1] $self;
    action rejectPO  result [1] $self;

    association _Items { create; }

    field ( readonly ) PurchaseOrder;
    field ( mandatory ) Vendor, OrderDate;
}

This definition tells RAP framework:

• Users can create, update, and delete purchase orders
• Two custom actions exist — approvePO and rejectPO
• PO number field is read-only (system generated)
• Vendor and date are mandatory

The framework automatically generates OData operations based on this definition. Fiori app’s Save button, Delete button, and custom action buttons connect directly to these behaviors.

Behavior Implementation Class

CLASS zbp_purchase_order DEFINITION PUBLIC ABSTRACT FINAL
  FOR BEHAVIOR OF ZC_PurchaseOrder.

  PUBLIC SECTION.

  PROTECTED SECTION.

  PRIVATE SECTION.

ENDCLASS.

CLASS zbp_purchase_order IMPLEMENTATION.

  METHOD approvePO.
    " Read purchase orders to approve
    READ ENTITIES OF ZC_PurchaseOrder
      ENTITY PurchaseOrder
      FIELDS ( PurchaseOrder Vendor NetValue )
      WITH CORRESPONDING #( keys )
      RESULT DATA(lt_po).

    " Update status to approved
    MODIFY ENTITIES OF ZC_PurchaseOrder
      ENTITY PurchaseOrder
      UPDATE FIELDS ( ApprovalStatus )
      WITH VALUE #( FOR ls_po IN lt_po (
        %key = ls_po-%key
        ApprovalStatus = 'APPROVED'
      ) ).

    " Return updated records
    READ ENTITIES OF ZC_PurchaseOrder
      ENTITY PurchaseOrder ALL FIELDS WITH
      CORRESPONDING #( keys )
      RESULT DATA(lt_result).

    result = VALUE #( FOR ls_result IN lt_result (
      %key   = ls_result-%key
      %param = ls_result
    ) ).
  ENDMETHOD.

ENDCLASS.

When the Fiori app’s Approve button is pressed — this ABAP method runs. Business logic, validation, database update — all here in ABAP. Fiori app just triggers the action and reflects the result.
